Saturday, August 25, 2012

nerdy derby build 01

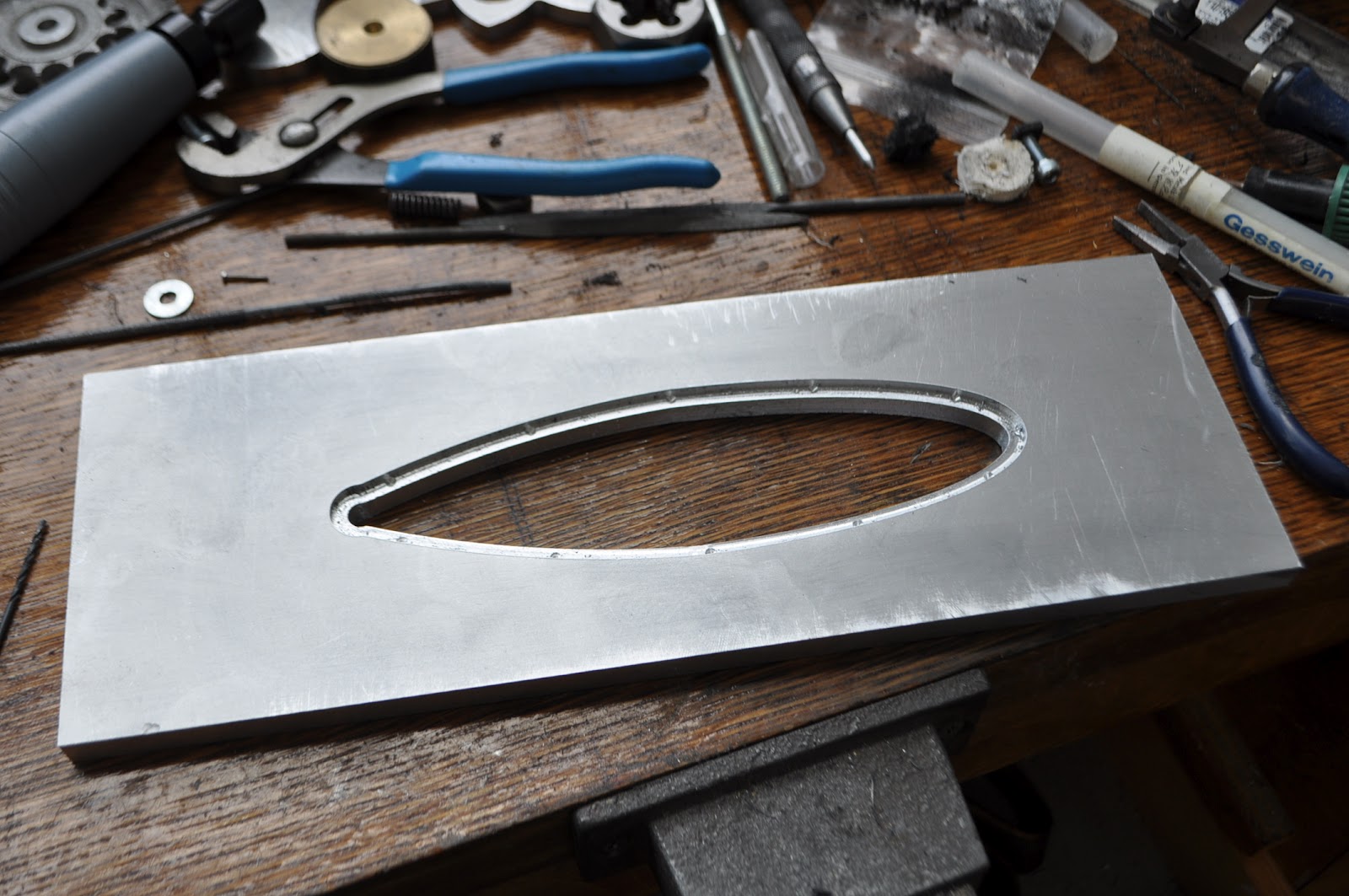

I got started on my nerdy derby belly racer while I was waiting on the aluminum in the sulfuric bath. I made a die for the  body and then pressed an aluminum test piece before doing a pressed copper version. I annealed the copper two times to be able to achieve the desired depth. This first pressing will form the underneath of the car. I then made a middle frame section that will serve as a place to mount the axles and attach the upper and lower sheet metal body sections. I also decided the belly racer would need a canopy so I cut the die for it and then did the first pressing. I'll have to anneal it and press some more so I can get the right look for it. I'll see if I can get to the wheels soon too.


raster said...


Mark Finn said...

Wow. Do you have any links that give a how-to on die pressing like this?

Frankie Flood said...

Send me your email address and I'll send you a pdf of the process that I give to my classes. It should describe most of it. I use aluminum dies, but acrylic works just fine for limited production runs.
